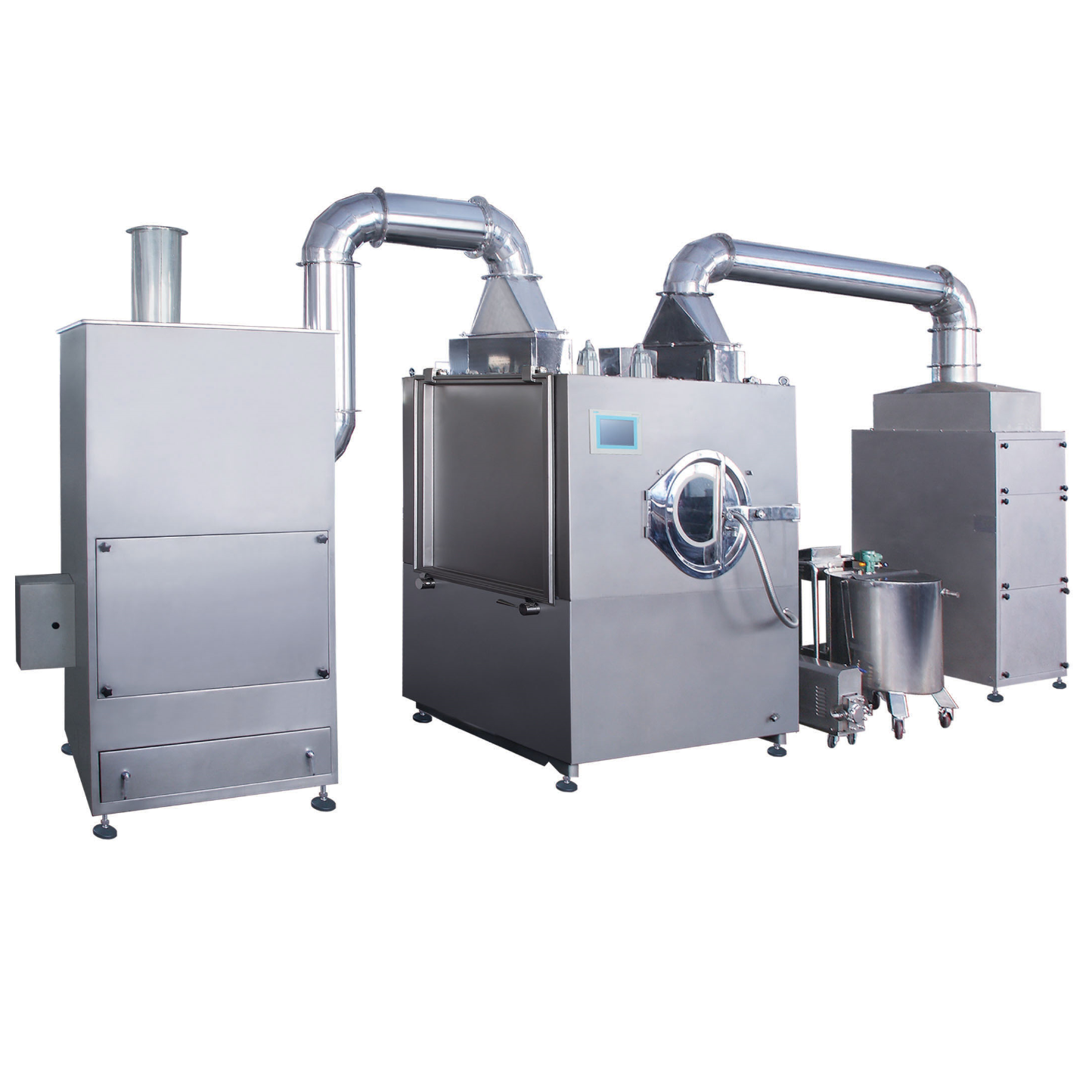

Product Details:
Product Type: Tablet Coating Machine
General Use: Pharmaceutical Industry
Material: Stainless Steel
Capacity: 100 KG / Hr
Model APM-TS-S11
Minimum Order Quantity 1 Set
Capacity 100 KG / Hr
AutomaticSemi Auto & Auto
MaterialStainless Steel
Grinding Wheel Speed1-16 RPM
Volume1570 x 1260 x 2030 mm
Dimension of Air Cabinet900 x 800 x 1935 mm
Dimension of Air Exhaust950 x 950 x 1950 mm
Diameter of FeederΦ 476 mm
Name | Values |
---|---|
Diameter of Coating Drum | Φ 1200 mm |
Power of Main Machine | 2.2KW |
Power of air Exhaust Cabinet Motor | 5.5 KW |
Name | Values |
---|---|
Weight of Main Machine | 850 KG |
Weight of Hot air Cabinet | 450KG |
Weight of air Exhaust Cabinet | 550 KG |
Used for coating various tablets, pills and bubble candies as well as chewing gum with organic film, water-soluble film and sugar film, etc. And it has such characteristics as high efficiency, low energy consumption and small floor area, etc. And it can be widely used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film etc in such fields as of pharmaceutical, food and biological line.
Basic Working Principle: The tablets make complicated and constant track movement with easy and smooth turning and frequent exchanging in the clean and closed rotational cylinder of the film coating machine. And it can automatically spray coating medium according to the process flow and reasonable process parameters. The hot air exhausted through the bottom of the tablets under the effect of air exhaust and negative pressure so as to make coating medium dry quickly on the surfaces of the tablets and form a firm, fine and close and smooth surface film
